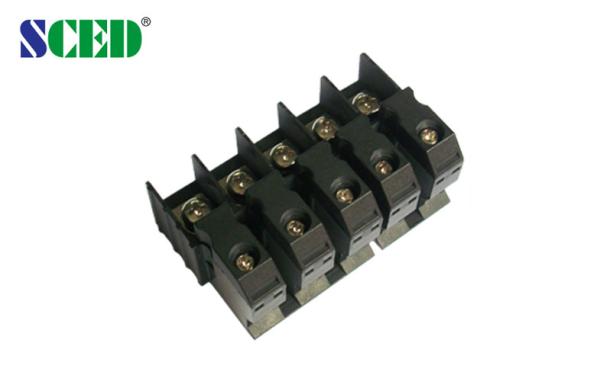

Electrical Feed Through Terminal Block Connector 600 Voltage 90A

Name: Electrical Feed Through Terminal Block Connector 600 Voltage 90A
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TD90-00

MOQ : 200

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 100K poles each monthly

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Black

Number of Contacts : 2P-12P

Pitch : 15.0mm

Rated Current : 90A

Rated Voltage : 600V

Type : Feed Through Terminal Block,Feed through terminal connectors,Electrical terminal Blocks

Wire Range : 4-20

Contact Now

Electrical Feed Through Terminal Block Connector 600 Voltage 90A

Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.

Feed through terminal blocks, Feed through terminal connectors, Penal mount terminal block, Electrical
terminal Blocks

How to order:
Electrical Feed Through Terminal Block Connector 600 Voltage 90A

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 90	600 / 90
Wire Range AWG	4-20	4-20
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	800 / 90	1000 / 90	1000 / 90
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	16
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Conduction Board / Plating	Brass / Nickel Plated
Screw / Plating	Steel / Nickel Plated
Other Data
Stripping Length mm	10-12
Screw / Torque / lbf.in	M5 / 14-16

Electrical Feed Through Terminal Block Connector 600 Voltage 90A

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
