Double Deck Din Rail Terminal Blocks

Name: Double Deck Din Rail Terminal Blocks
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TR-10N

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Rated Current : 65A

Rated Voltage : 600V

Applications : Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev

Color : Grey

Deck : Double decks

Type : Din Rail Terminal Blocks,Ground terminal blocks, Din rail terminal blocks

Contact Now

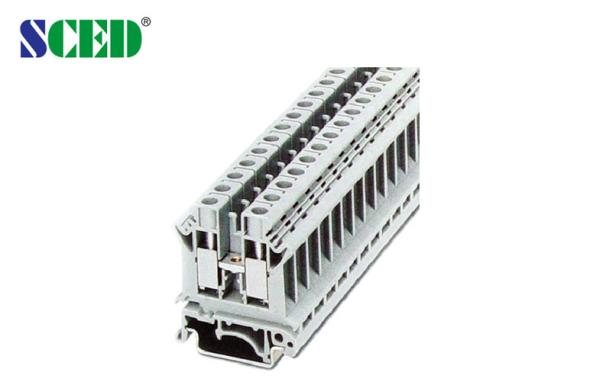

Double Deck Din Rail Terminal Blocks

Detailed product Description:

Double Decks 600V 65A Din Rail Terminal Blocks, 10.2mm Rail Mounted Terminal Block

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

□Single Deck; ■Double decks; □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Double Deck Din Rail Terminal Blocks

Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

Parameter and Drawing Specifications:

Description Color	Type
Terminal Grey	TR-10N
End Cover Grey	D-TR-3/16
Fixed Bridge	FBI 10-10 Imax: 76A
Insertion Bridge	EB 10-10 Imax: 76A
Separating Plate	TS-K
Partition Plate	ATP-TR
Zack Strip White	ZB10
Screwdriver	SZS 1.0×4.0
Rail Material	aluminum
Dimensions mm	10.2/42.5/2
Height (U35: 7.5/U35: 15G 32) mm	47/54.5/52
Screw / Torque Nm	M4 / 1.5-1.8
Stripping Length mm	10
IEC Technical Data
Max. Load Current / Cross Section A / mm²	76 / 16
Rated Surge Voltage / Contamination Class KV / -	8 / 3
Surge Voltage Category	Ⅲ

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
