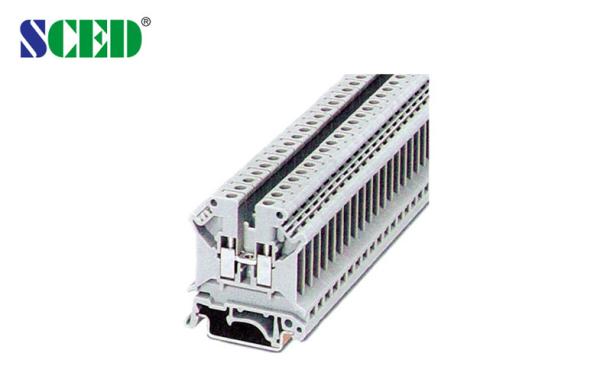

Grey Rail Mounted Terminal Blocks with Imax 41A Fixed Bridge FBI 10-6

Name: Grey Rail Mounted Terminal Blocks with Imax 41A Fixed Bridge FBI 106
Brand: SCED
Price: 0.153 USD

Best Grey Rail Mounted Terminal Blocks with Imax 41A Fixed Bridge FBI 10-6 wholesale

Brand Name : SCED

Model Number : TR-5N

Certification : UL, CE, CUL, VDE, CQC etc.

Place of Origin : Guangdong,China

MOQ : 500 PCS

Price : USD 0.153-0.244 per PCS

Payment Terms : T/T, L/C

Supply Ability : 1000000 Pole/Poles per Month

Delivery Time : 5-20 days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198

AWG : 30-10

Terminal width : 6.2mm

Current : 600V

Volt : 30A

Inflammability Class : Inflammability Class

Contact Resistance : Less than 8mΩ

Rated Surge Voltage : No abnormal within 1 minute

Insulation Resistance : Above DC500V, 500MΩ

Contact Now

6mm2 Rail Mounted Terminal Blocks 600V 30A AWG:30-10 Terminal width 6.2mm

Detailed product Description:

Terminal width: 6.2mm, 600V 30A, AWG:30-10, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Grey. Other colors also available.

Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

Parameter and Drawing Specifications:

Description Color	Type
Terminal Grey	TR-5N
End Cover Grey	D-TR-3/16
Fixed Bridge	FBI 10-6 Imax: 41A
Insertion Bridge	EB 10-6 Imax: 32A
Separating Plate	TS-K
Partition Plate	ATP-TR
Zack Strip White	ZB6
Screwdriver	SZS0.6×3.5
Rail Material	aluminum
Dimensions mm	6.2/42.5/2
Height (U35: 7.5/U35: 15G 32) mm	47/54.5/52
Screw / Torque Nm	M3 / 0.6-0.8
Stripping Length mm	8
IEC Technical Data
Max. Load Current / Cross Section A / mm²	41 / 6
Rated Surge Voltage / Contamination Class KV / -	8 / 3
Surge Voltage Category	Ⅲ / Ⅰ

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
