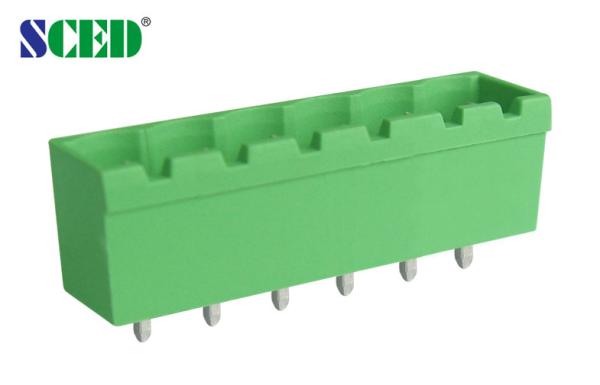

PCB Header Plug In Terminal Block Connector with Vertical Pitch 7.62mm

Name: PCB Header Plug In Terminal Block Connector with Vertical Pitch 762mm
Brand: SCED
Price: 1 USD

Brand Name : SCED

Model Number : TP508H-76

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Imflammability : UL 94, V-0

Voltage : 300V

Current : 18A

Pitch : 7.62mm

Poles : 2 -16 P

Color : Grey, other color available

Contact Now

PCB Header Plug In Terminal Block Connector with Vertical Pitch 7.62mm

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 18		300 / 18
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	500 / 18	630 / 18	1000 / 18
Rated Surge Voltage KV	6	6	6
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Terminal / Plating	Brass / Tin Plated
Other Data
PCB Hole Diameter mm	1.4
Pin Dimension mm	1.0*1.0

PCB Header Plug In Terminal Block Connector with Vertical Pitch 7.62mm

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

PCB Header Plug In Terminal Block Connector with Vertical Pitch 7.62mm
