Brand Name : SCED
Model Number : TR-4N-02
Certification : UL, CE
Place of Origin : Shenzhen, China
MOQ : 200PCS
Packaging Details : Standard Export Carton
Terminal Width : 10.00mm
Rated voltage/Currennt : 300V/30A
Housing : PA66/ UL 94V-0
Color : Grey
Screw : M3/ Steel/ Zinc Plated
Clamp Cage : Brass / Nickel Plated

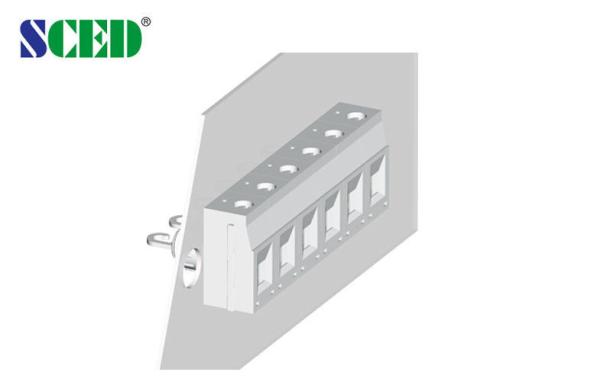

Through Panel Terminal Blocks PCB Panel Mount Connecting Screw M3
1. Screw: M3/ Steel/ Zinc Plated
2. Used for POWER supply, power filter, and Industrial control
3. Easy assemble to the panel with thickness within 10mm.
4. Operating temperature: -40℃~+150℃
Photo Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300 / 30 |
| 300 / 10 |
Wire Range AWG | 10-30 |
| 10-30 |
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 500 / 32 | 630 / 32 | 1000 / 32 |
Rated Surge Voltage KV | 6 | 6 | 6 |
Rated Connecting Capacity mm2 | 4 | ||
Material |
| ||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Clamp Cage / Plating | Brass / Nickel Plated | ||
Conduction Board / Plating | Brass / Nickel Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data |
| ||
Stripping Length mm | 8 | ||
Screw / Torque / lbf.in | M3 / 5.3-7 |
Applications:
1. PCB, Frequency Converters,
2. Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Electric Power,
3. Rail Transportation, Communication, Security, Medicine Equipment, Military, Elevator, etc..
